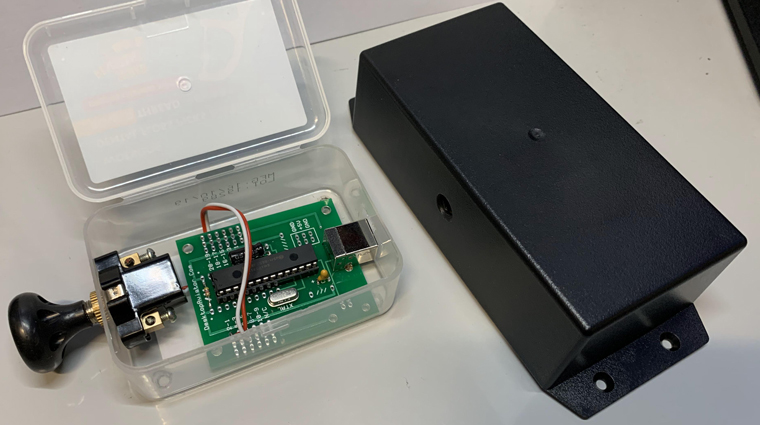

The picture on the right is a parking brake module I bought from Desktop Aviator many
years ago. It didn’t even come with a decent brake handle. The device was kept in the storage until I “discovered” it when I was looking for something else.
Although it is trivial, I told myself that it should add fun to my system — I finally recalled that was the idea I bought it originally.
But then I found it too big to fit into the location under my yoke. So I opened the case to check out if it could be modified.
Luckily it is possible since the housing is wasting an awfully lot of space with just one tiny circuit board and a pull-push knob inside.

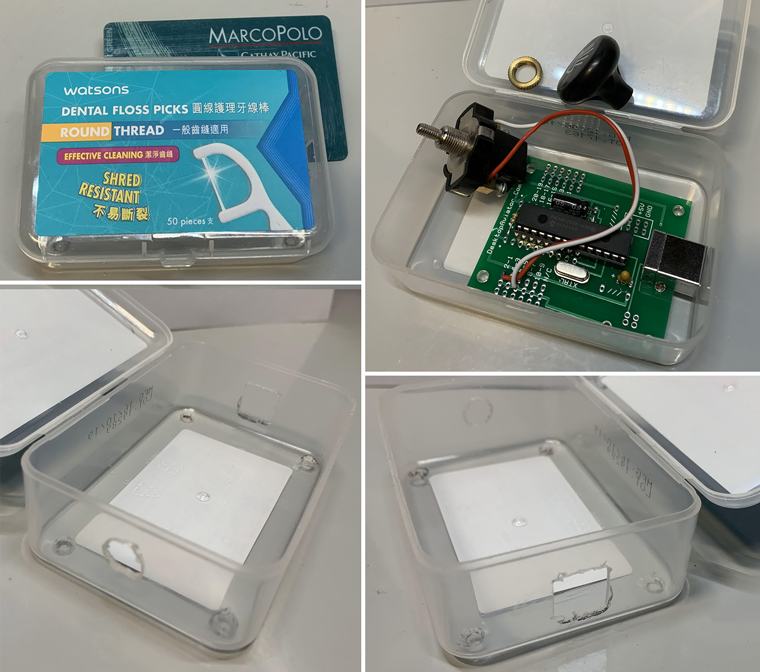

After some searching, I eventually picked a dental floss picks plastic box as the new case for it.
Pictures below tell the story itself about the shrinking of the device and how it is mounted to the typical position properly.

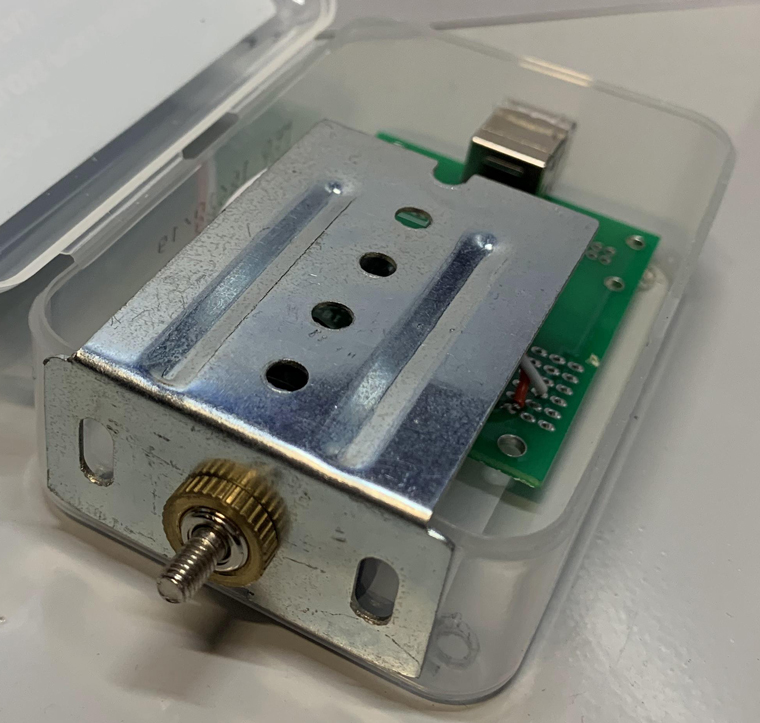

The modification of the parking brake is generally done and the result is more than acceptable up to this point. However, in order to enhance the rigidity of the push-pull button face-plate, an angled metal bracket is further added to it. And the result is largely improved.

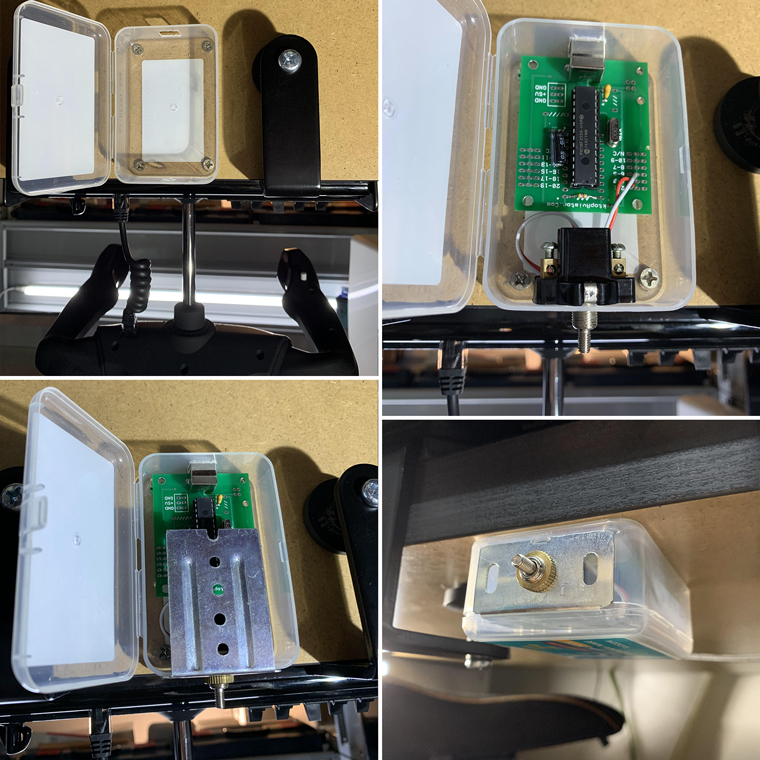

For the mounting of the parking brake, all components inside the unit were removed temporarily and then reassembled after the case is mounted properly.

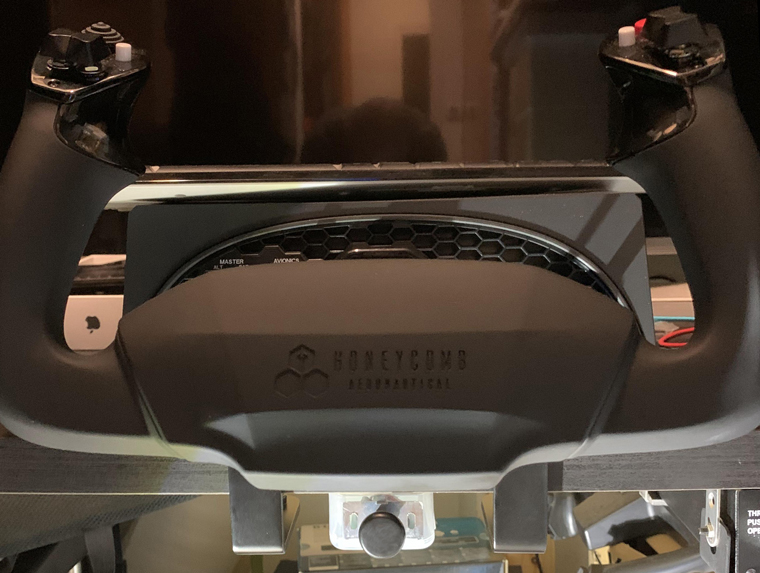

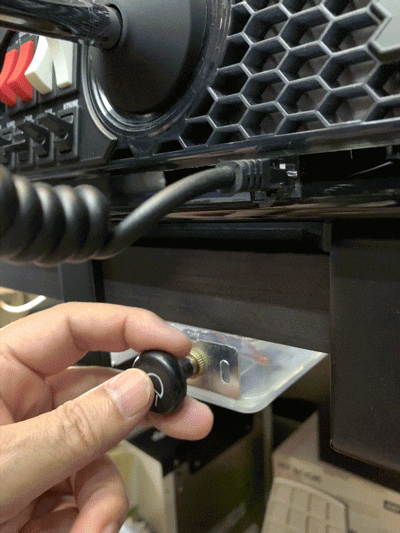

Following is how the modified parking brake looks like under the Yoke. The original lamp logo on the button was removed by some dark grey paints.
Adding the parking brake to FSX/P3D or X-Plane is plug-n-play. However, it is still required to assign the button as Brakes (set parking) under Key Assignments of Options in FSX/P3D or similar function command in X-Plane.
Although the parking brake might not be an essential gear in a flightsim cockpit, I do get extra fun from it even though it doesn’t come with a more realistic handle.
After all, the modification not only meets my need but is also green by utilizing the waste.
